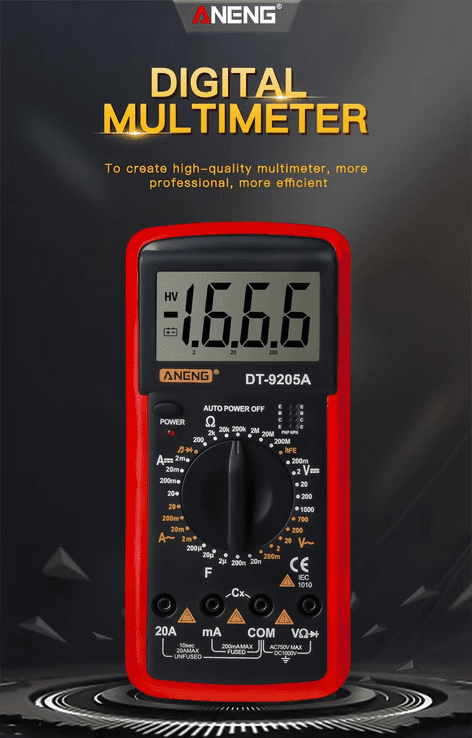

ANENG DT9205A Digital Multimeter

Product code: DT9205A

"A cheap and cheerful multimeter, ideal for the hobbyist 3D printing enthusiast."

ANENG DT9205A

1999 Counts Digital True RMS Multimeter

This meter is  a handheld 31/2 digital multimeter for measuring AC/DC Voltage, AC/DC Current,Resistance,Diode,Transistor,Frequency,Temperature,Capacitance and Continuity test .Battery operated. Requires 1xPP9 battery ( Not included)

Function

Range

Accuracy

DC Voltage

200mV/2V/20V/200V

+-(0.5%+2)

1000V

+-(0.8%+2)

AC Voltage

200mV

+-(1.2%+3)

2V/20V/200V

+-(0.8%+3)

700V

+-(1.2%+3)

DC Current

2mA/20mA

+-(1.2%+2)

200mA

+-(1.4%+2)

20A

+-(2.0%+2)

AC Current

2mA/20mA

+-(1.2%+3)

200mA

+-(1.8%+3)

20A

+-(3.0%+7)

Resistance

200Ω

+-(1.0%+2)

2kΩ/20kΩ/200kΩ/2MΩ

+-(0.8%+2)

20MΩ

+-(1.2%+2)

200MΩ

+-(5.0%+10)

Frequency

2kHz+-(2.0%+5)

20kHz+-(1.5%+5)

Capacitance

2nF/20nF/200nF/2uF/200uF

+-(4.0%+5)

Diode

Yes

Transistor

Yes

Continuity test

Yes

Overrange indication

Yes

Low battery indication

Yes

Auto power off

Yes

Display

LCD, 1999 Counts

Polarity indication

Yes

C.Package List:
1 * ANENG DT9205A
1 * Test Line
1 * User Manual

product review overlay image

Customer reviews

No reviews left yet
Write A Review

No reviews have been left for this product, be the first to leave a review
EAN 0610452928892
MPN DT9205A
Brand TCMUK3D
Condition New
Product Code DT9205A
