Orballo Prusa Steel - Y Axis End Caps, Bearing Clamps, Belt Tension
Orballo Prusa Steel - Y Axis End Caps, Bearing Clamps, Belt Tension
Orballo Prusa Steel - Y Axis End Caps, Bearing Clamps, Belt Tension
Orballo Prusa Steel - Y Axis End Caps, Bearing Clamps, Belt Tension
Orballo Prusa Steel - Y Axis End Caps, Bearing Clamps, Belt Tension

Orballo Prusa Steel - Y Axis End Caps, Bearing Clamps, Belt Tension

Product code: PRUSAYENDPP
£14.39 £11.99 (ex. VAT) £19.99

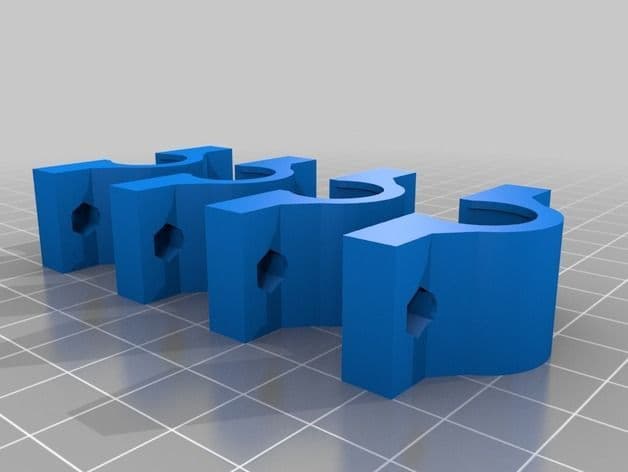

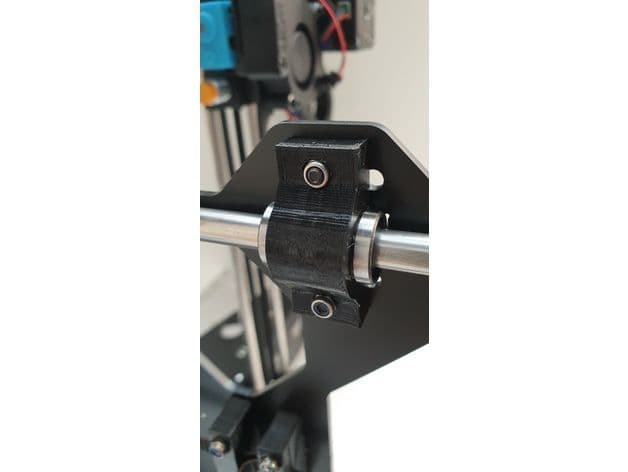

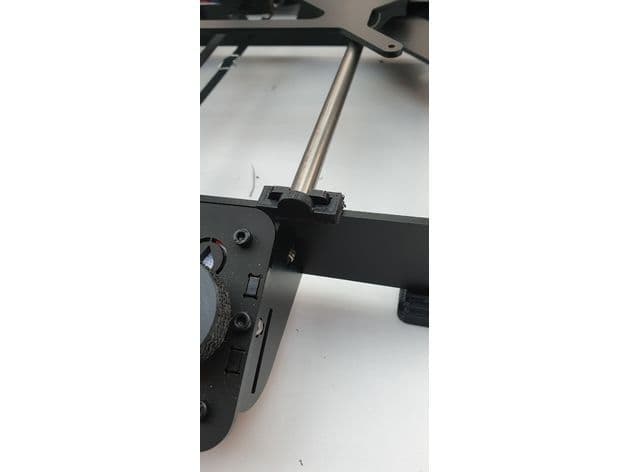

Decided to make some alterations to Orballo Prusa Steel, having had some issues with Igus Bearings (Y Axis Shifting, slightest mis-alignment with Igus on linear drive can cause problems, so wanted to eliminate any variation) gone back to classic bearings. I've also had the Y Axis shafts slide out of the frame due to the pick up.

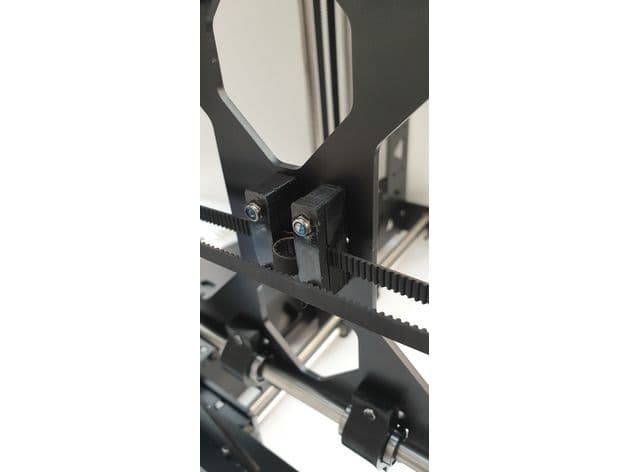

Heat the M3 nuts up using soldering iron and press into locations. Use all original screws, except on the belt clamp, they are M3 x 20mm. The belt clamp does make tensioning the belt a lot easier, has to be done with the heatbed off. Will design an adjustable tensioner next.

PLEASE NOTE: Most of the parts within this category are printed to Order, please allow an extra 2-3 days for delivery.

Want to print it yourself - download files for free here

product review overlay image

Customer reviews

No reviews left yet
Write a review

No reviews have been left for this product, be the first to leave a review
EAN 0610452926669
Brand TCMUK3D
Condition New
Product Code PRUSAYENDPP
Weight 0.11kg
