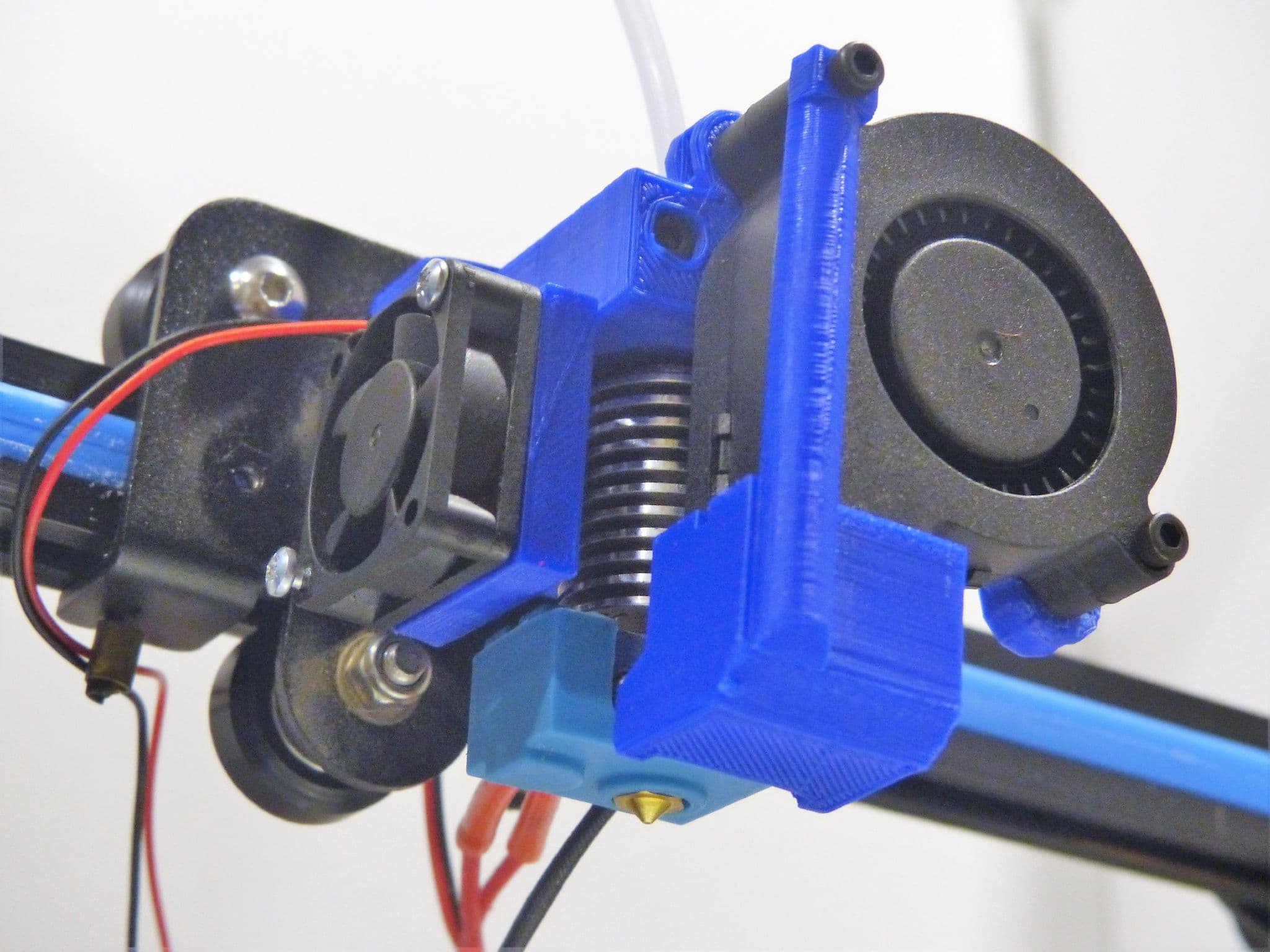

Our Creality CR10 series upgrade kit, contains everything you need to enhance your CR10 3d printer with our innovative Vardøger-6 (V6) J Type Hot end to give you a true V6 printing experience.

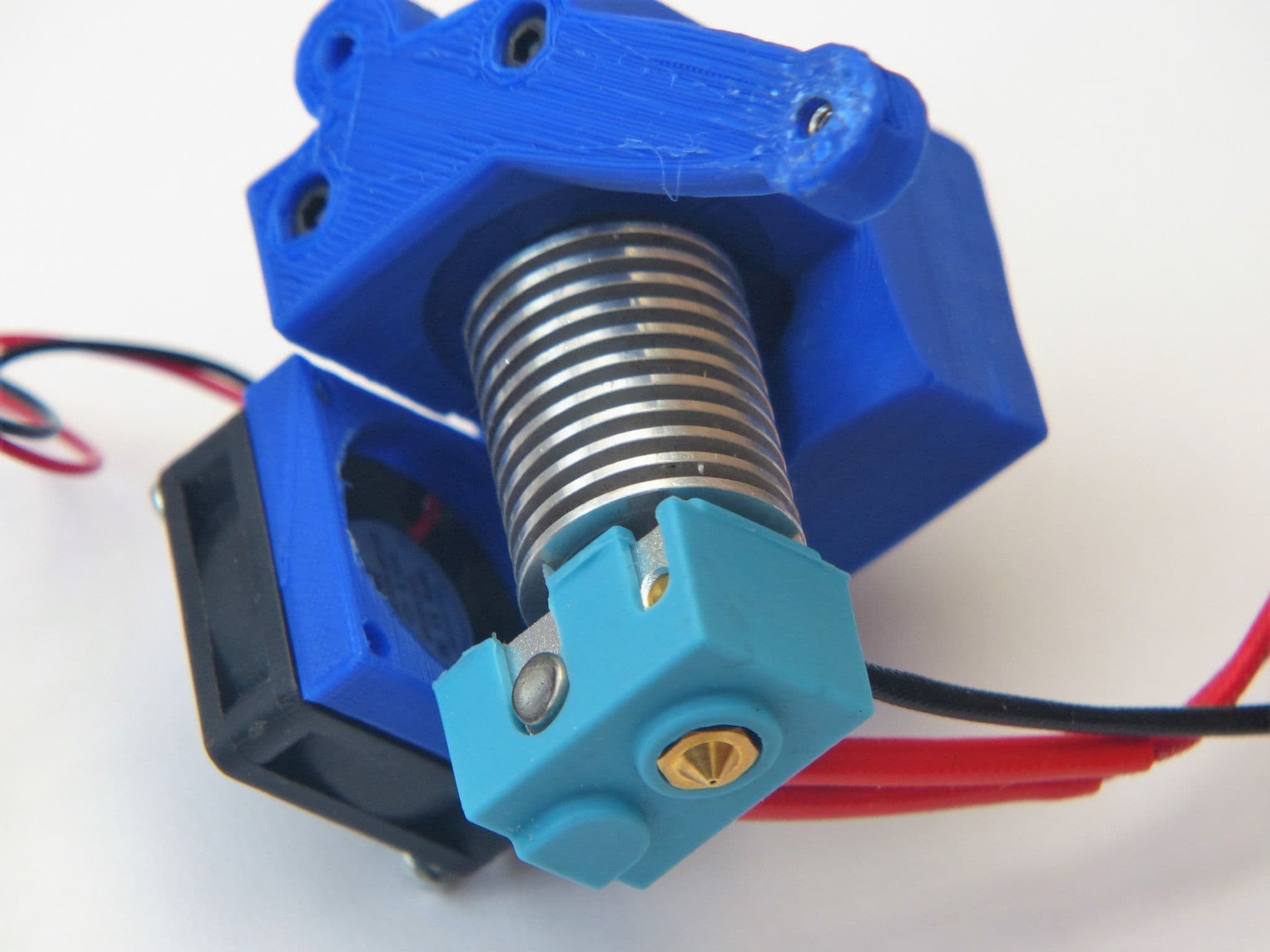

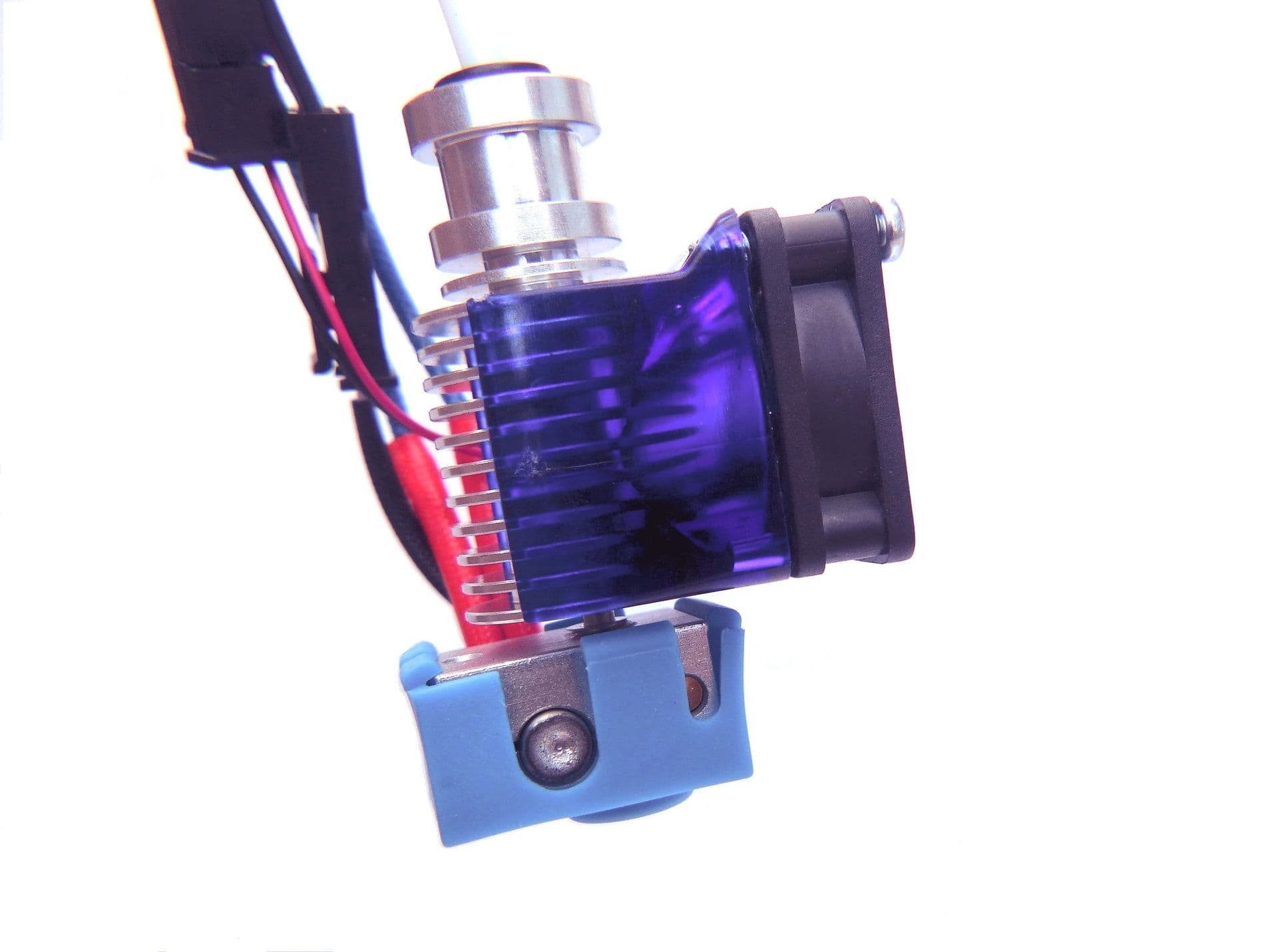

Vardøger-6 (V6) is a J-type Hot End of all-metal design and fully compatible with the market-leader. Developed and tested in the UK under an open source licence it brings together quality innovative components from multiple sources to give top class performance at a very competitive price.
Nozzles are fully interchangeable with the e3dv6 range & other compatible M7 nozzles and accessories.
Our NTC Thermistor has a crimped cartridge and is fibreglass sleeved for improved strain relief and heat protection, 3mm diameter x 15mm Brass Cartridge 100k Ohm 4276K
Our purpose made high power ceramic heater cartridge gives a much-improved performance over fragile and poor tolerance enamel resistors.

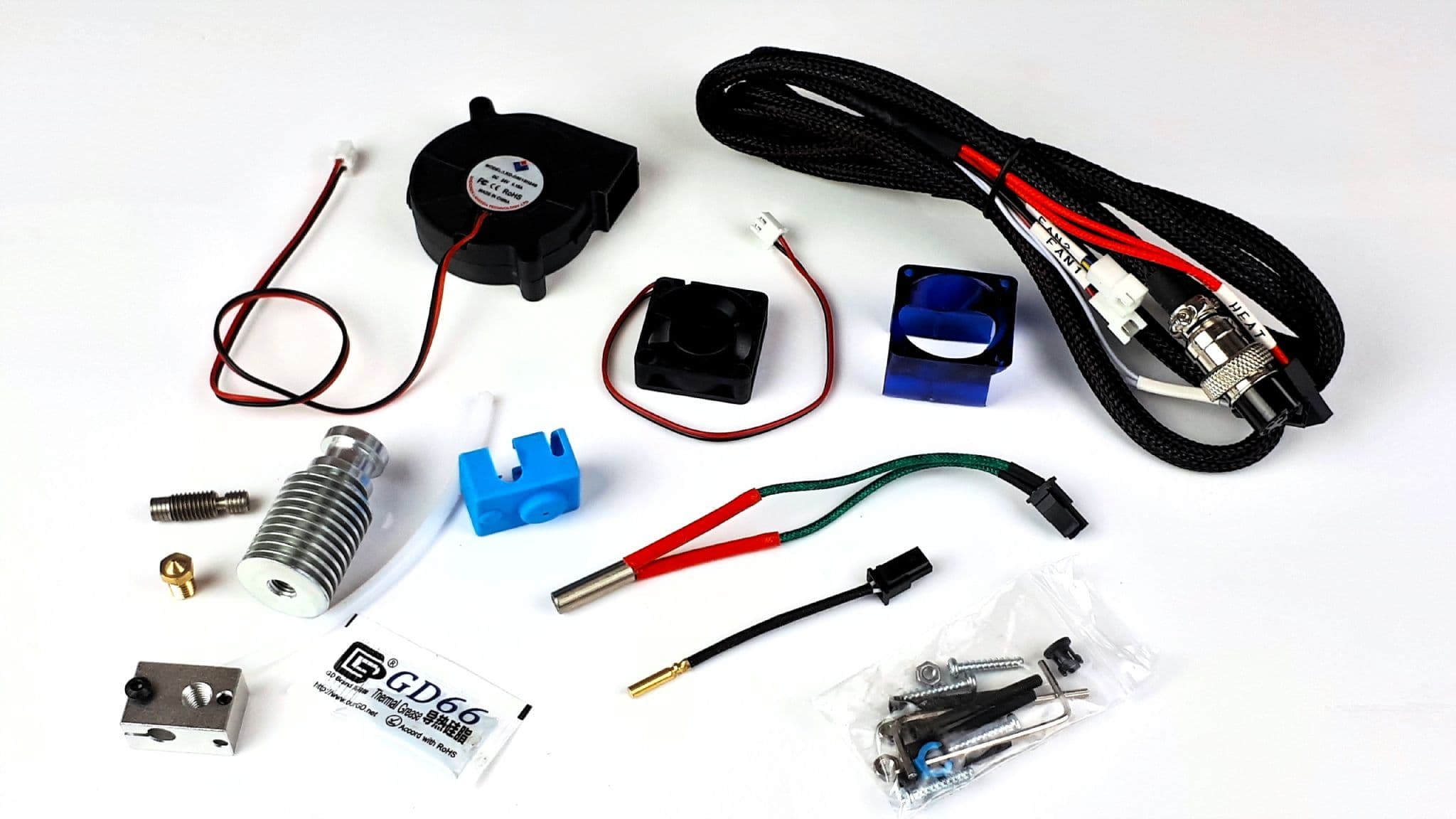

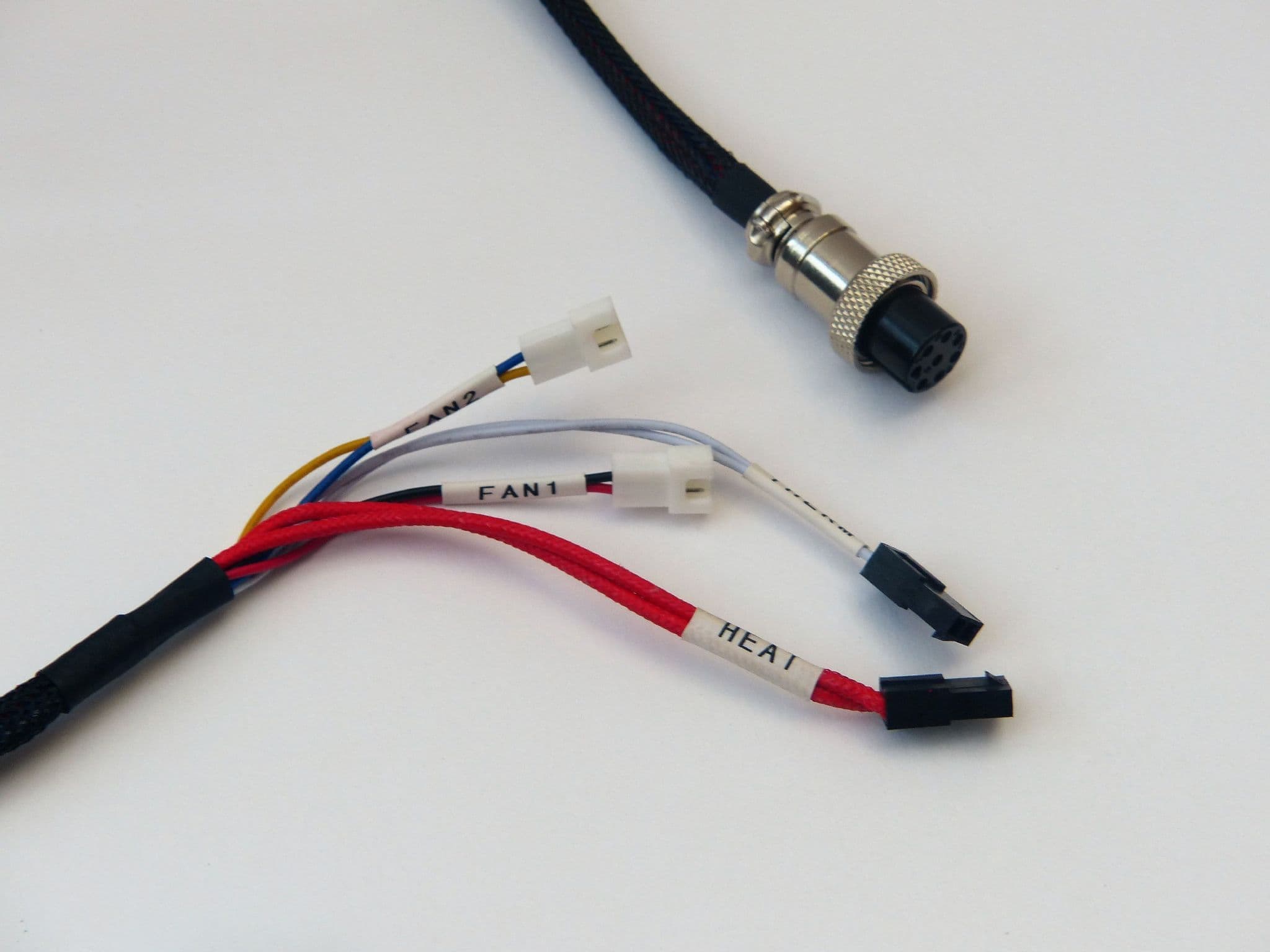

The kit includes our custom CR10 wiring loom with quick release connectors that provide easy & quick access to the hot end for maintenance and avoids the necessity of rewiring back to the connector. We also include a 30x30 heatsink fan and a 50x50 Blower fan. Available in 12V or 24V 1.75mm filament only.
Before purchase please check that your printer uses the round Aero Style connector to the control box. If it does not then consider our Ender 3 style modification kit, also available in 12V
Our kit includes a standard set of 3D printed parts to enable you to get up and running quickly. However you may wish to adapt these parts or print versions in alternative materials or settings, a link to the models is provided below.
Design for the printed parts can be downloaded here
Assembly instructions available here: EN IT
