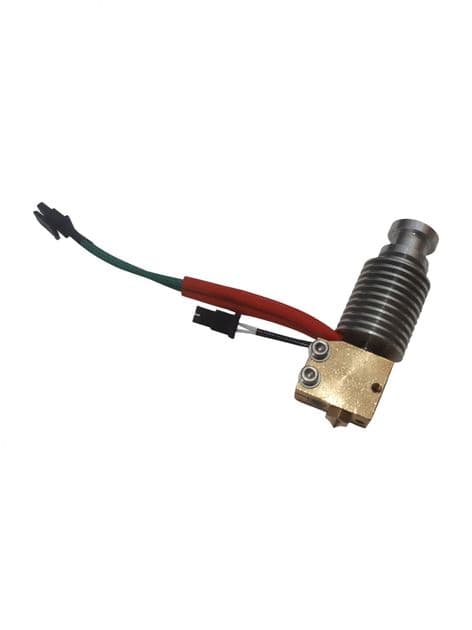

Wayland Volcano 12V High Power V6 Hotend 60W J-head

In mythology, Wayland the smith is the legendary master blacksmith of the gods. We have honoured that legend in creating our ultimate high volume FDM print J-head for 1.75mm filaments. It is our answer to the e3d volcano, but with added oomph...

Our kit includes:

Brass heat block. Brass has a much higher thermal mass than traditional Aluminium, but is much more cost effective than the expensive plated copper options. This results in a much more stable temperature whilst printing. Brass does however initially heat up slower to counteract this we have included...

Our new 60W heater not only has the power to rapidly heat up the head from cold but has more than enough staying power to cope with longer print runs and higher temperatures.

The kit is supplied configured for use in direct mode, which includes a short length of PTFE tube which is inserted into the heat sink and pushed into the top of the heat-break. To use in Bowden mode, you need to simply replace the tube supplied with a longer length plus the means to connect the other end to your extruder.  If you are intending to print at higher temperatures, we recommend that you use Capricorn PTFE tube which has a higher melting point than traditional PTFE tubing.

Intended for high volume printing the standard nozzle supplied is a 0.8mm diamenter. We also include a 0.4mm Nozzle for more detailed work. Nozzles are fully interchangeable with the e3d range & other compatible nozzles and accessories.
